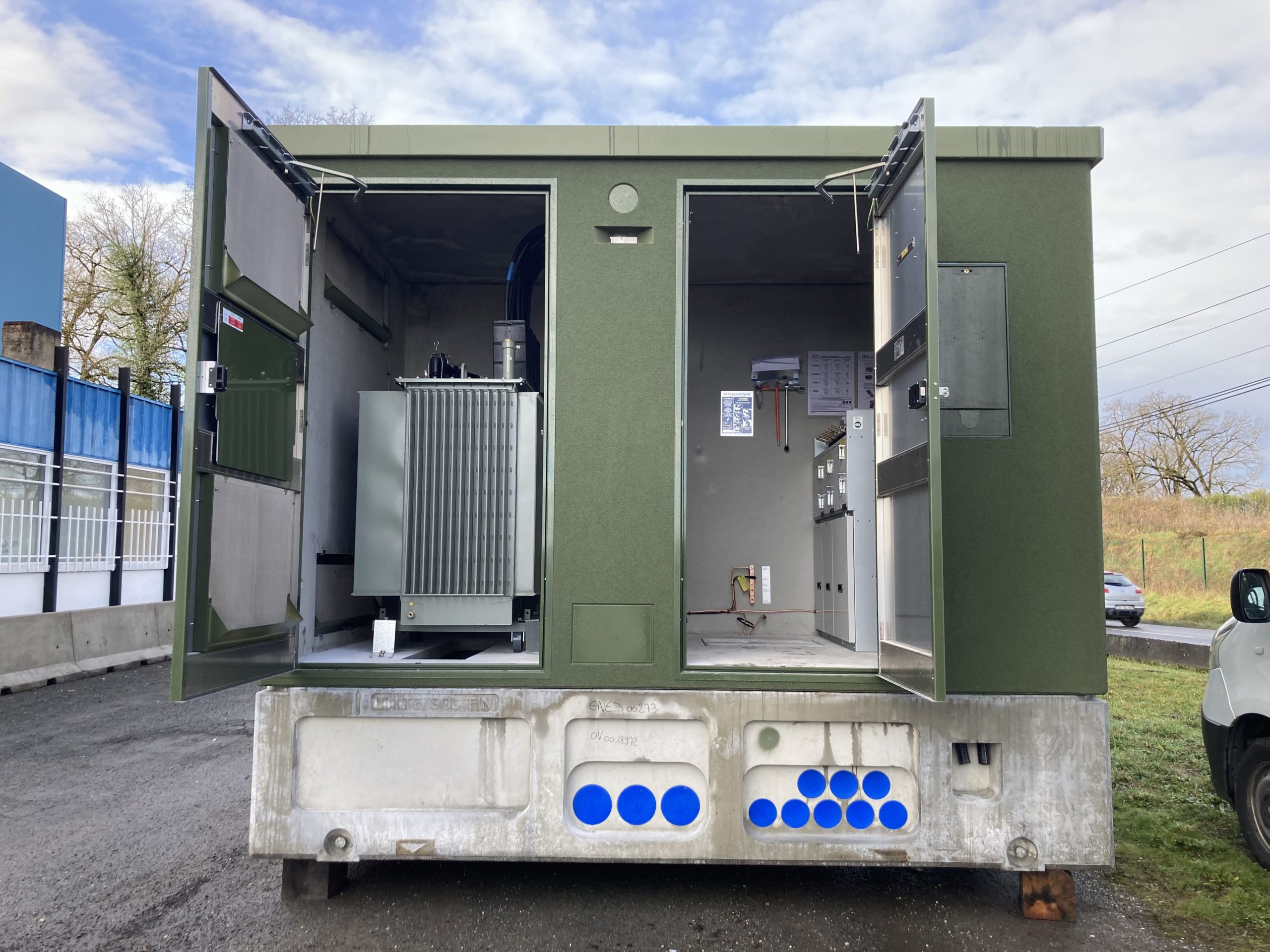

"PAC 4UF" Concrete substation :
Enedis-approved with formal authorization for use
Dimensions: L 3655 x W 2200 x H 3200 mm
Technical void height: 720 mm
Standard colors: RAL 1015 or 6003 (other RAL colors available on request)
Technical void with removable or knock-out cable entries
Oil containment bund integrated into the substation's technical void
Full-surface concrete slab
Floor cut-outs for switchgear, LV boards, transformers, and miscellaneous equipment
1 Manhole access with removable cover
1 Single access door with low-level ventilation
1 Transformer access door with high and low-level ventilation
4 Ventilation grilles
Unloading & site requirements :
Unloading via mobile crane: Lifting beam mandatory
Reach : 7 meters from crane axis to substation center point
Note : An additional fee will apply if the required reach exceeds 7 meters
Responsibility of the customer : *Excavation and earthworks
Substation earthing/grounding
Site access arrangements for mobile crane and semi-trailer
Road permits or other local authorizations
Electrical equipment :
Transformer
Swittchboard / LV panel
Fuses
MV connection set
LV connection set
To be defined (brands and models)
Door hardware & locking :
1 Enedis-approved emergency exit bar (panic bar) for access door (EN179)
1 Thirard cylinder lock (matching the delivery department requirements)
1 Transformer door latch for internal opening
Safety accessory kit including :
Safety posters: PR10 and "First Aid for Electric Shock" (Internal & External)
Insulating stool
Rescue hook/pole
Voltage Detector (VAT) with capacitive pole
Insulating gloves and glove box
2 kg Fire extinguisher
